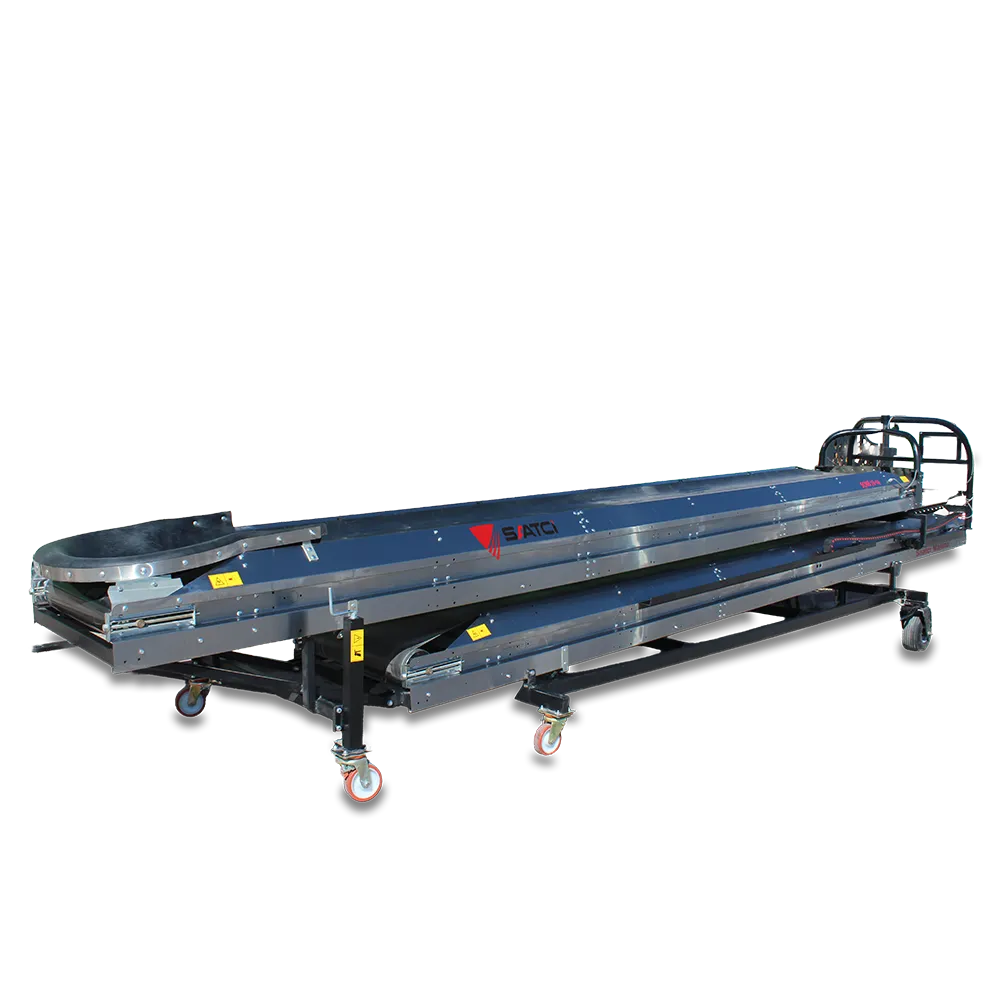

Dual transfer conveyor
The Double Transfer Belt is storage equipment used in the storage section for tuber crops such as potatoes, onions, carrots, etc.
It is a conveying tool that can be used simultaneously in various areas, such as behind the receiving hopper, during discharging into the bunker, or from the front of the bunker onto the sizing machine.
The Double Transfer Belt is horizontal-axis equipment that can extend from 7 meters to 14 meters.
The Double Transfer Belt also features a dual-speed capability.
TECHNICAL TABLE
SÇNB 76-14
Machine Specifications
| DESCRIPTION / BİLGİLER | SPECIFICATIONS / ÖZELLİKLER |
|---|---|
| Product Code | SÇNB 76-14 |
| Width (cm) | 76 |
| Belt Length (cm) | 1400 |
| Inlet Height (cm) | 65-110 |
| Outlet Height (cm) | 105-150 |
| Distance from Wheel Front (cm) | 170 |
| Belt Speed (m/s) | 0,38 - 0,76 |
| Maximum Capacity (t/h) | 50 |
| Operating Voltage (V) | 380V |
