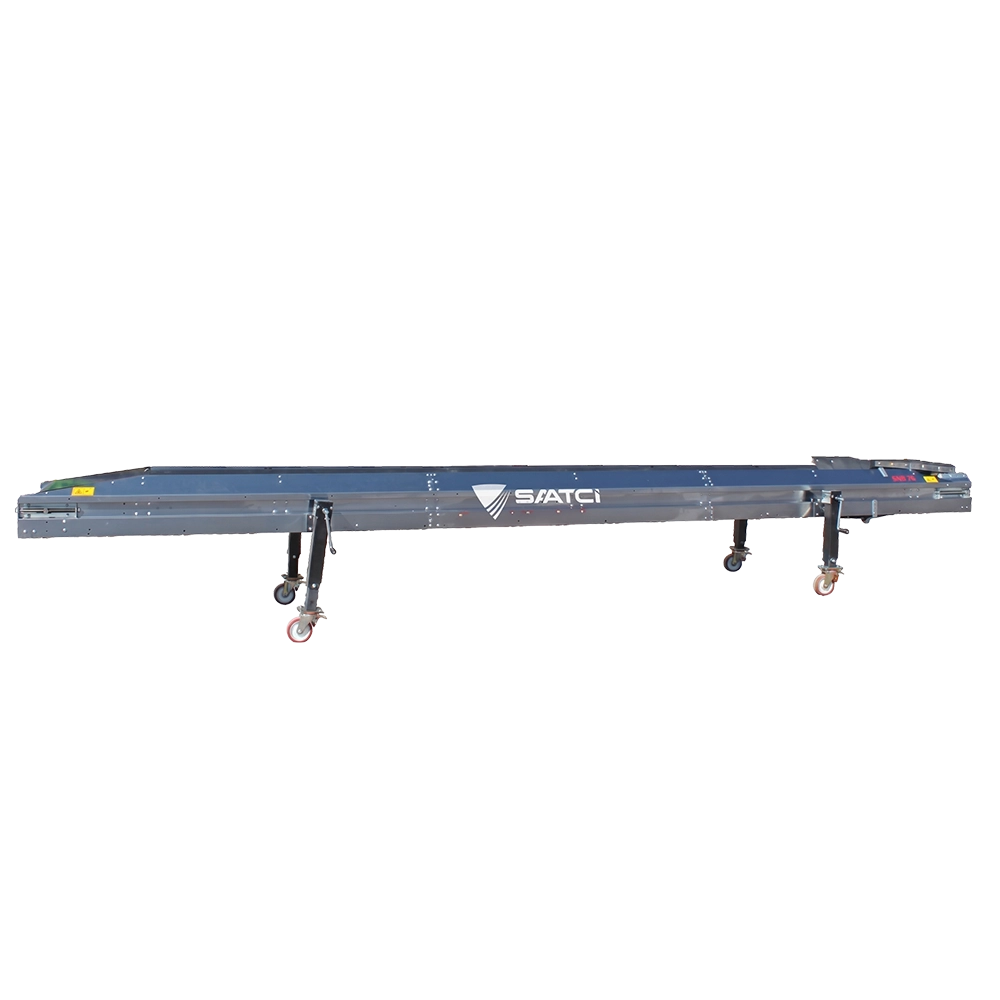

SNB 76-7-Meter Transfer Conveyor
The Transfer Belt is a conveyor system that enables the transportation of tuber crops such as potatoes, onions, etc. They can be connected in series. Transfer Belts are manufactured with 4-meter and 7-meter flat belts.
TECHNICAL TABLE
SNB 76-7
Machine Specifications
| DESCRIPTION / BİLGİLER | SPECIFICATIONS / ÖZELLİKLER |
|---|---|
| Product Code | SNB 76-7 |
| Belt Width (cm) | 76 |
| Belt Length (cm) | 700 |
| Inlet Height (cm) | 65 - 110 |
| Outlet Height (cm) | 105 - 150 |
| Distance from Wheel Front (cm) | 170 |
| Belt Speed (m/s) | 0,38 - 0,76 |
| Maximum Capacity (t/h) | 50 |
| Operating Voltage (V) | 380V |
