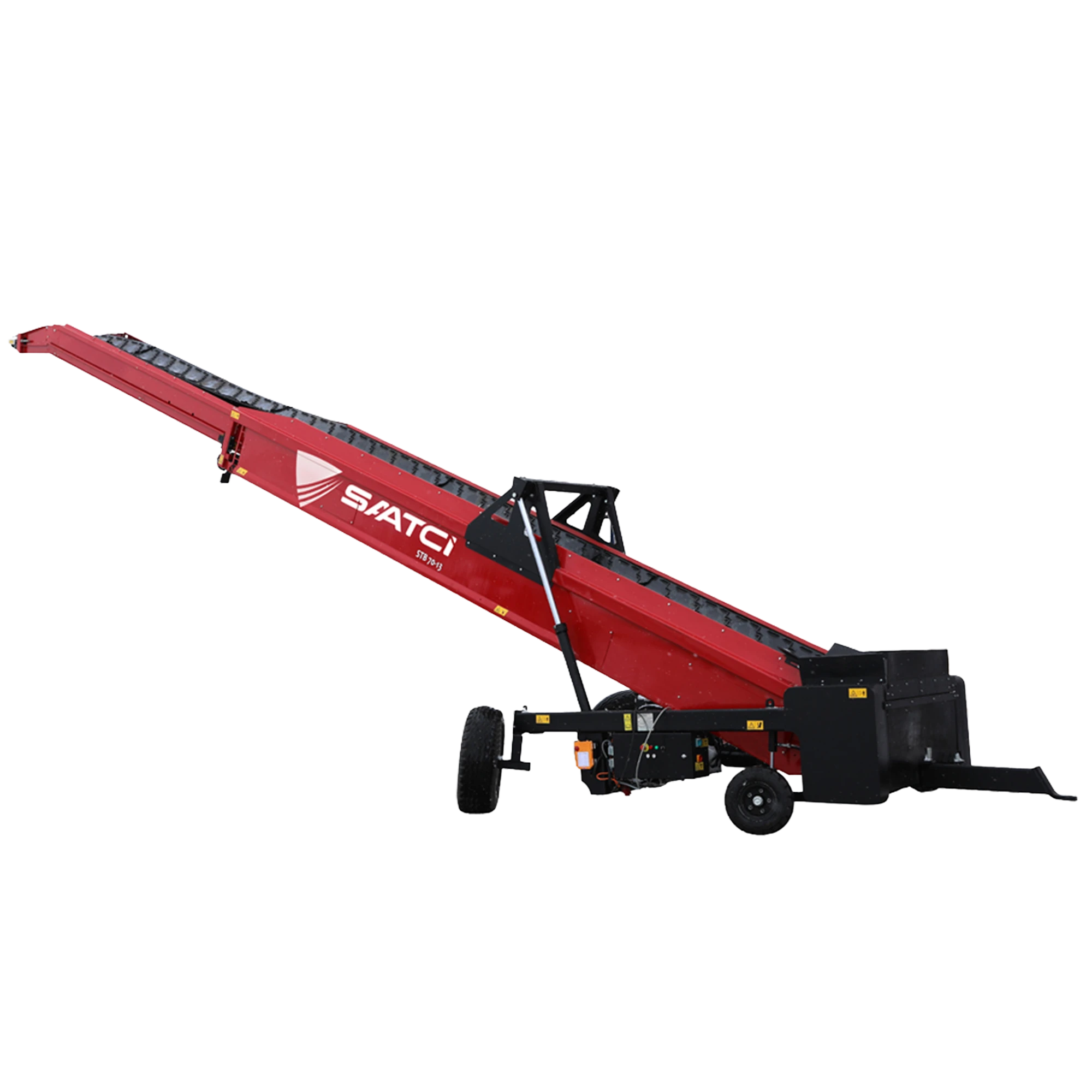

STB 70-13 Telescopic conveyor
Ensures the regular and orderly piling of tuber crops arriving at the storage facility.
It operates automatically, performing this process with left and right oscillating movements over a certain distance within a defined area, thanks to its built-in sensor.
It is equipped with both hydraulic and electric motors.
Thanks to the hydraulic motor, its main chassis can be moved right/left and forward/backward as desired via a controller.
Thanks to the electric motor, the telescopic nested belts can extend from 7 meters to 13 meters.
It is durable thanks to its enclosed drive profiles and sturdy chassis.
It is easy to use.
TECHNICAL TABLE
STB 70-13
Machine Specifications
| DESCRIPTION / BİLGİLER | SPECIFICATIONS / ÖZELLİKLER |
|---|---|
| Product Code | STB 70-13 |
| Vehicle Length (m) | 13 |
| Telescopic Retracted Length (m) | 7 |
| Telescopic Extended Length (m) | 13 |
| Maximum Height (m) | 5.5 |
| Maximum Width (m) | 2.4 |
| Belt Speed (m/h) | 2150 / 4377 |
| Maximum Capacity (t/h) | 50 |
| Operating Voltage (V) | 380V |
