Loading Conveyor
İletişime Geçin

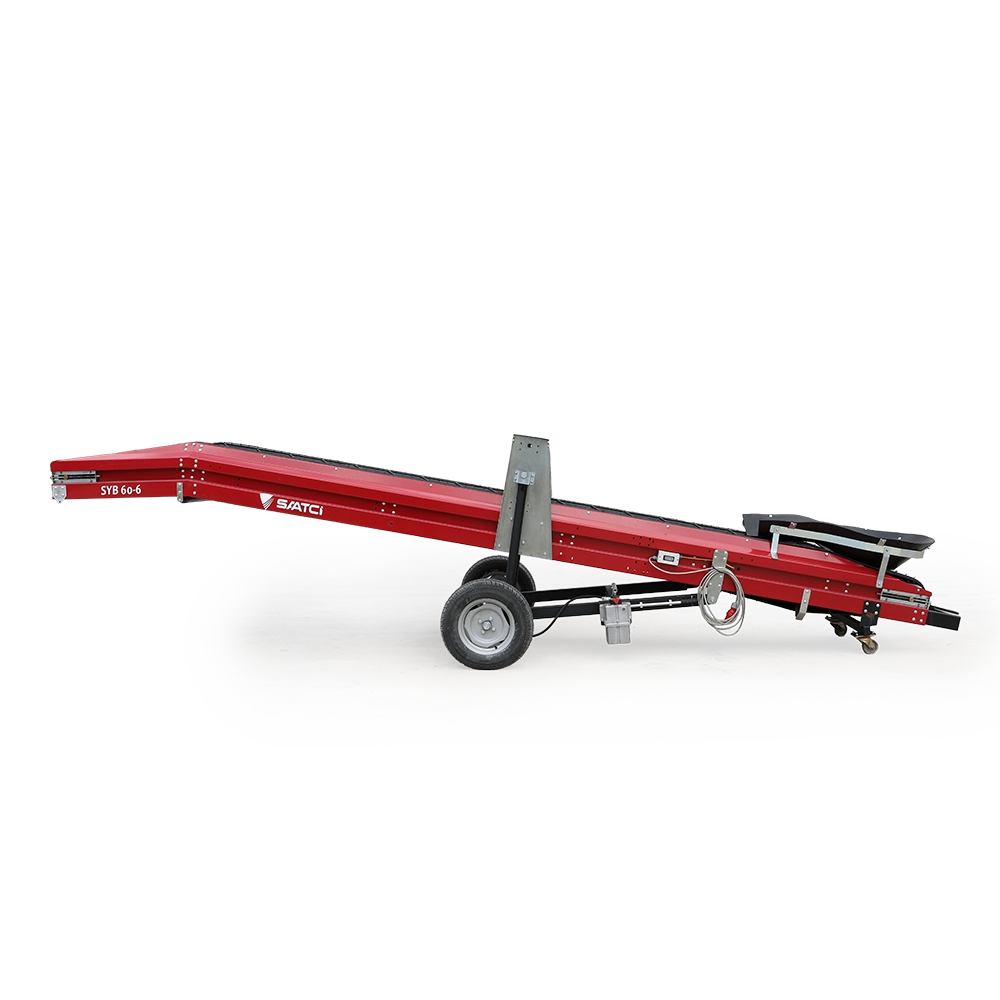

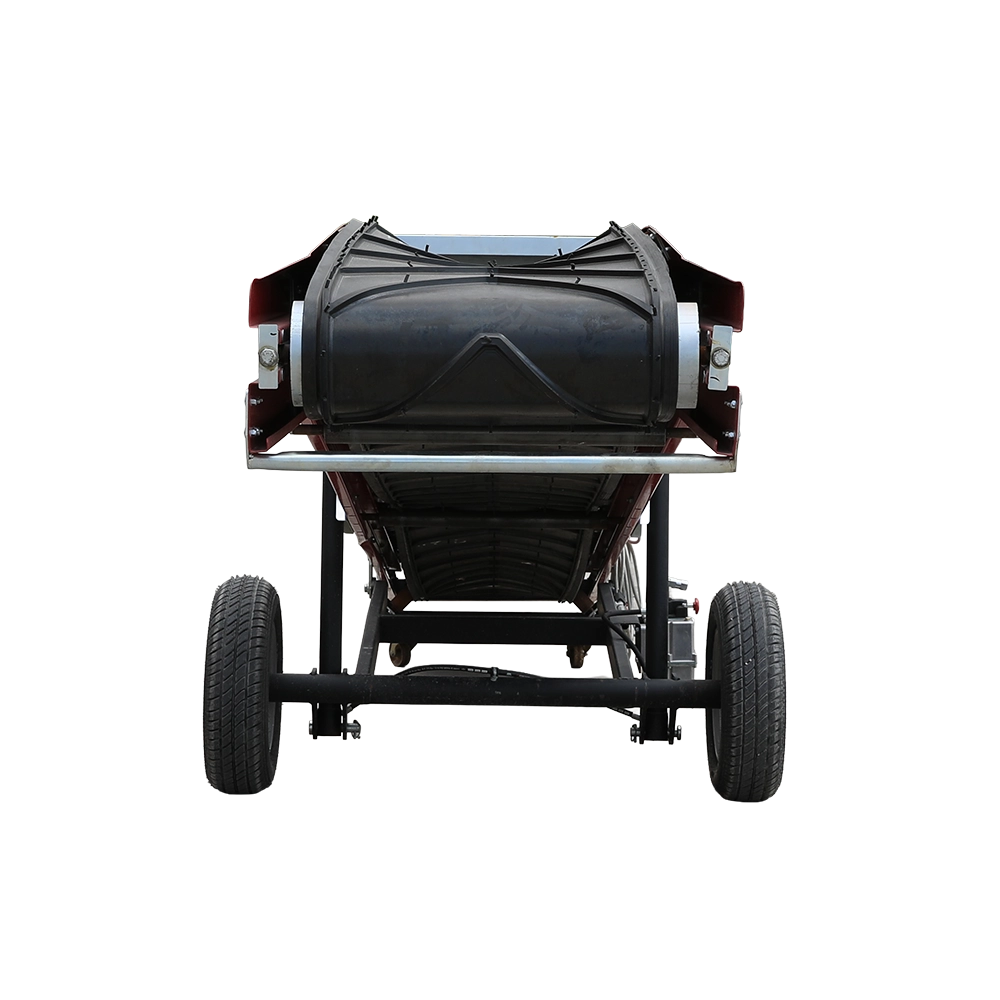

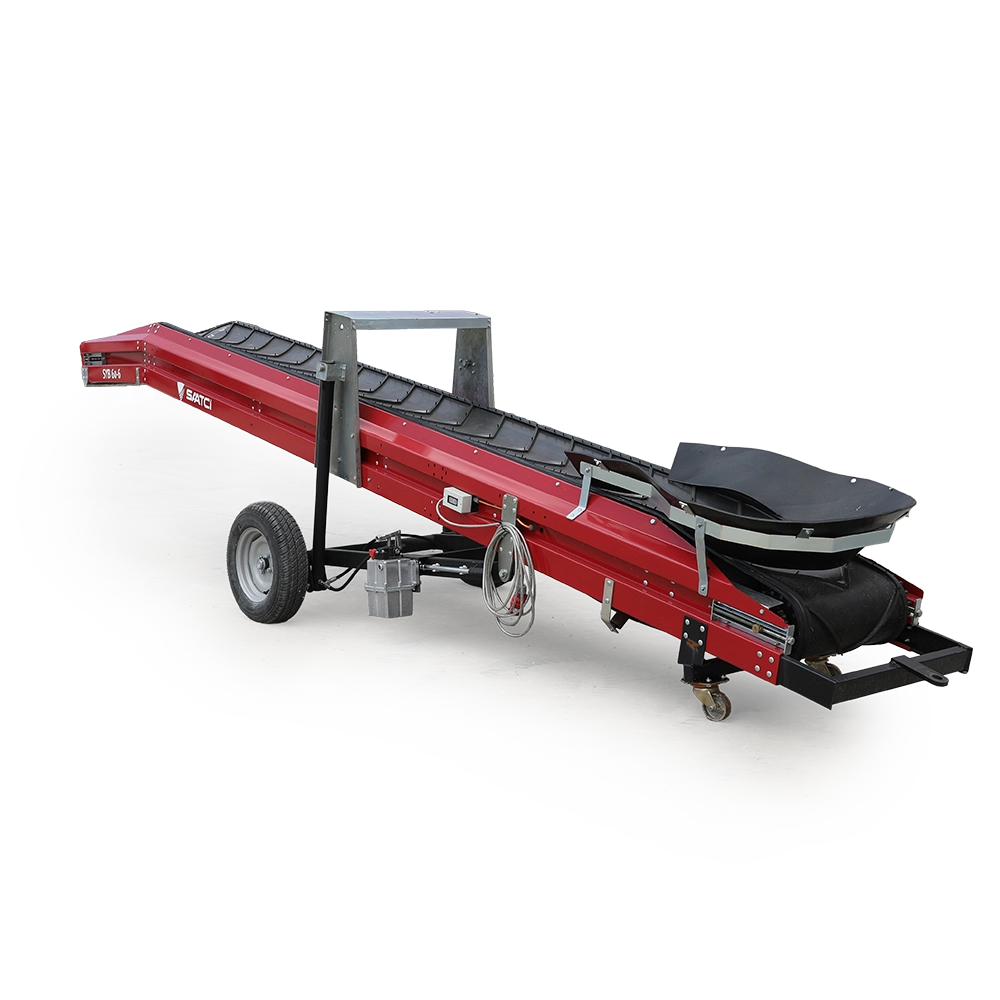

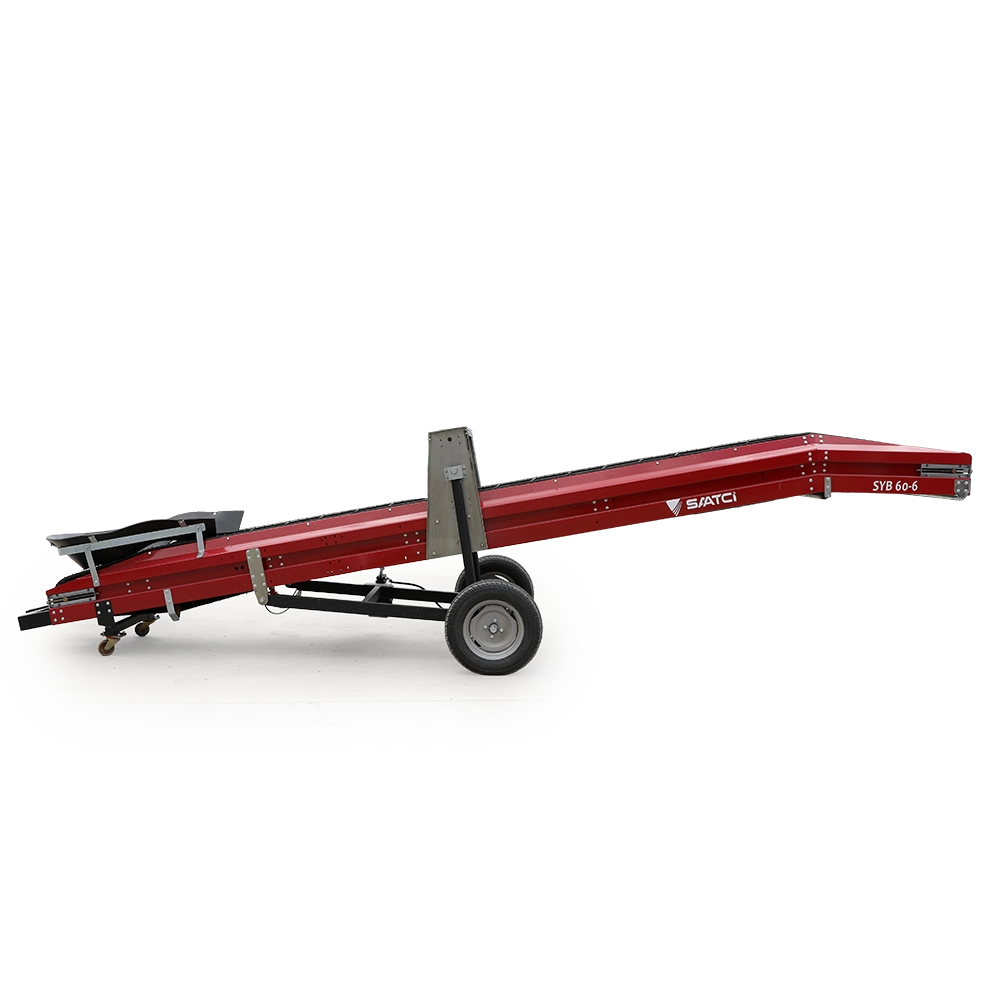

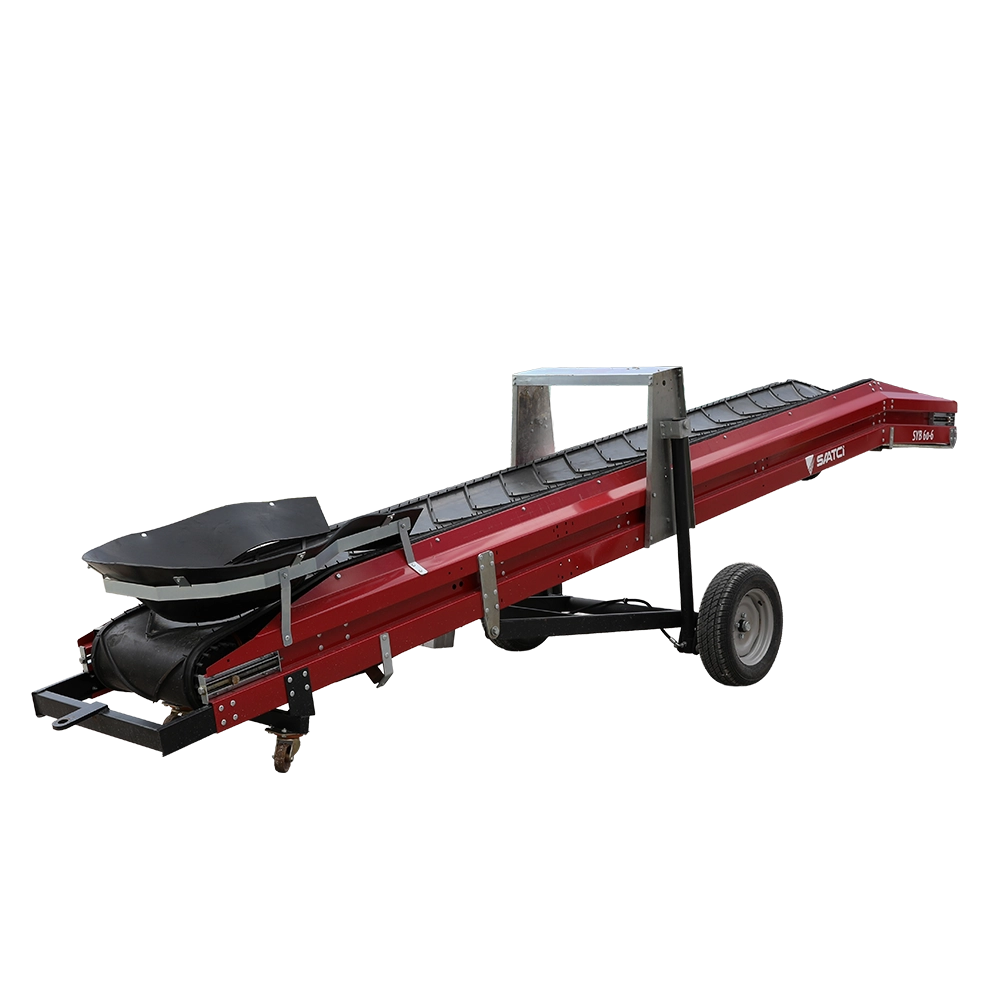

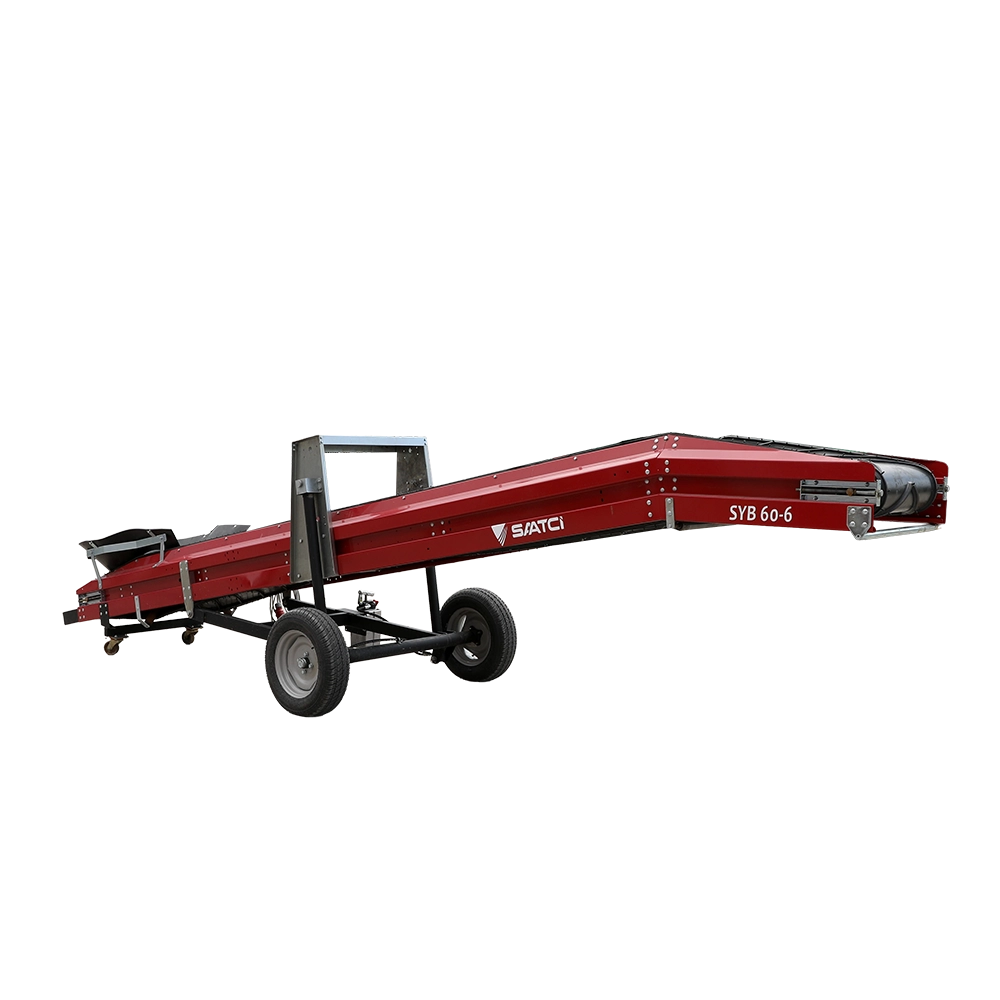

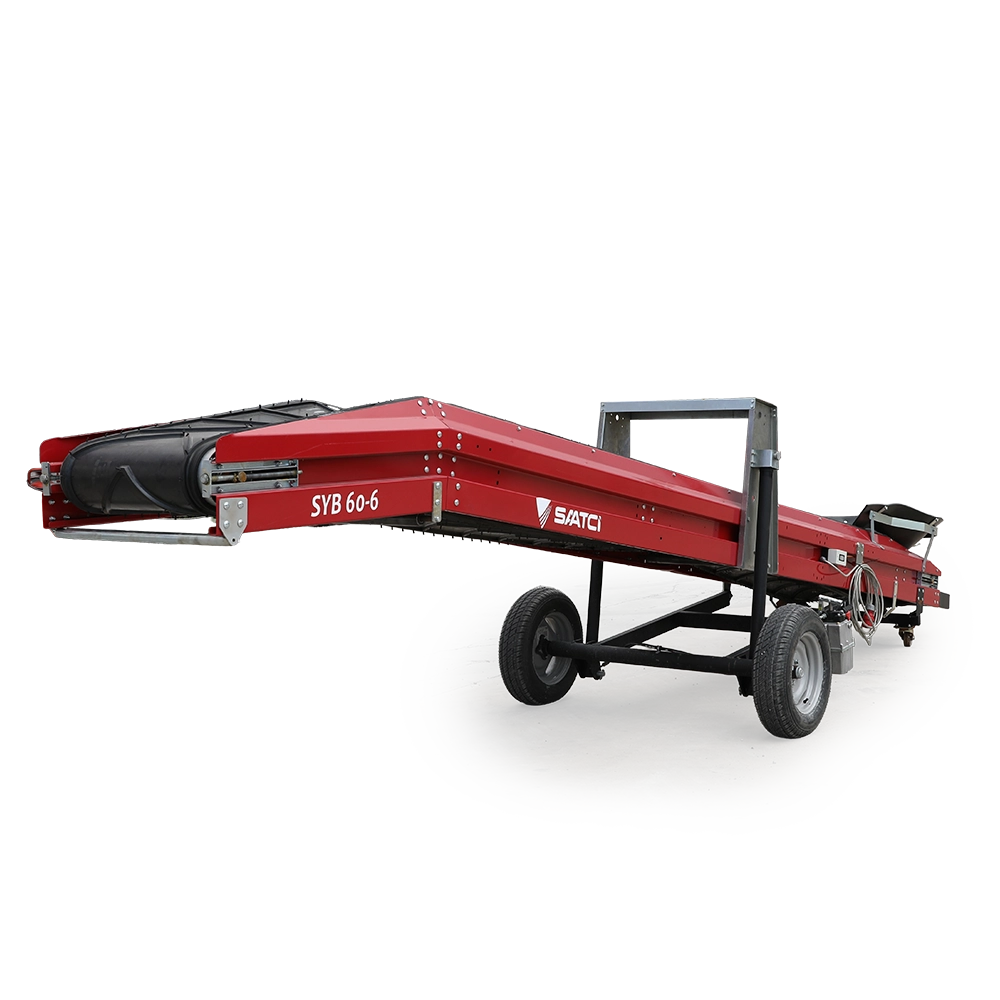

SYB 60-6-meter loading conveyor6
The Loading Belt is storage equipment used in the storage section for tuber crops such as potatoes, onions, carrots, etc. Tuber crops require storage after harvesting; this machine provides the greatest convenience in transporting and transferring them to the desired location.
The Loading Belt is multifunctional and can be used in various applications.
It can be utilized in desired areas by placing it in front of the Soil Extraction Bunker's discharge belt, at the outlet of the Sizing Machine, in front of the Bagging Machine, or after the Transfer Belt.
Loading Belts are manufactured in lengths of 4m / 6m / 8m / 10m using chevron (cleated) belts.
TECHNICAL TABLE
SYB 60-6
Loading Belt Specifications
| DESCRIPTION / BİLGİLER | SPECIFICATIONS / ÖZELLİKLER |
|---|---|
| Product Code | SYB 60-6 |
| Length (cm) | 600 |
| Width (cm) | 60 |
| Maximum Outlet Height (cm) | 280 |
| Minimum Outlet Height (cm) | 120 |
| Inlet Height (cm) | 50-70 |
| Maximum Overall Width (cm) | 150 |
| Height Adjustment | Automatic |
| Belt Speed (m/s) | 0,66 |
| Operating Voltage (V) | 380V |
